Xingfa Woodworking Machinery兴发木工机械

Machinery for Panel Furniture

Cut, drill and edge. Find the right equipment for your production workflow.

  • CNC cutting数控开料
  • Multi-side drilling多面钻孔
  • Edge banding自动封边
Explore Products查看产品 Contact Xingfa联系兴发

From your finished product从成品出发

What would you like to make?您要制作什么？

Choose an application. Explore the equipment behind it.选择应用方向，
进一步了解背后的设备与工艺。

Cabinetry
Application concept · AI-generated应用场景示意 · AI 生成

Cabinetry橱柜与柜体

From panels.
To living spaces.从一块板材，
到生活的空间。

Explore cutting, edge finishing and drilling equipment for cabinet components.围绕柜体部件，了解开料、封边与钻孔设备如何各司其职。

Explore the equipment从这些设备方向开始

  1. CNC cutting数控开料
  2. Edge banding自动封边
  3. CNC drilling多面钻孔
Configuration starts with your material and workpiece.具体配置按材料与工件确认。
Doors & frames
Application concept · AI-generated应用场景示意 · AI 生成

Doors & frames门板与门框

The finishing details.
Make the difference.从门板到门框，
细节各有讲究。

Look at panel machining alongside edge finishing, heat transfer and grooving for door-frame production.从门板加工到门框封边、热转印与开槽，按具体工件梳理设备方向。

Explore the equipment从这些设备方向开始

  1. Panel machining门板开料加工
  2. Door-frame processing门框加工设备
Configuration starts with your material and workpiece.具体配置按材料与工件确认。
Custom furniture
Application concept · AI-generated应用场景示意 · AI 生成

Custom furniture定制板式家具

Different pieces.
A connected approach.不同的家具部件，
衔接各自的工序。

Start with storage units, desks or wardrobes, then explore the operations their panels need.从收纳柜、书桌与衣柜出发，把每块板件的开料、封边与孔位加工看清楚。

Explore the equipment从这些设备方向开始

  1. CNC cutting数控开料
  2. Edge finishing板件封边
  3. Hole & groove machining孔槽加工
Configuration starts with your material and workpiece.具体配置按材料与工件确认。

Inside the machine走近真实设备

Look closer.
See how H4 works.走近 H4，
读懂每一处细节。

From the spindle to the operator panel, explore the details behind a four-process CNC cutting machine.从主轴到操作面板，通过真实整机与部件近照，了解四工序开料机的配置。

H4 CNC cutting machine in a workshop
H4 Workshop photograph实机现场照片

Four spindles. More than cutting.四组主轴，不止开料。

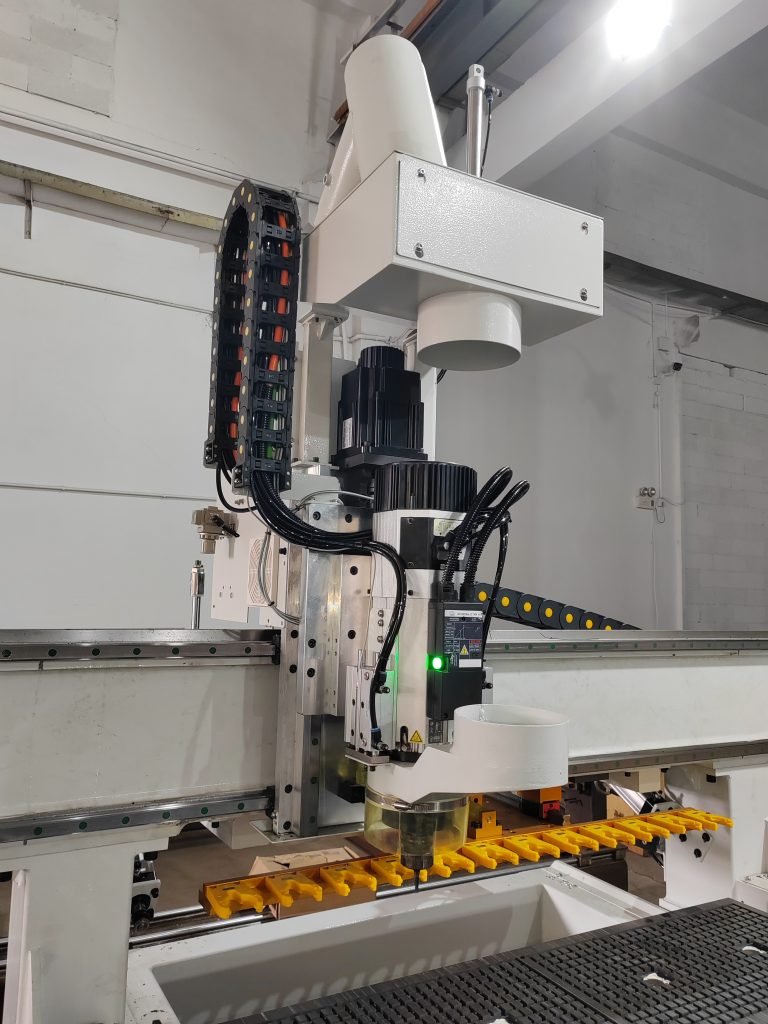

Close-up of the H4 spindle and dust collection assembly

4 × 6.0 kWAir-cooled spindles风冷主轴

Four 6.0 kW air-cooled spindles support drilling, cutting and grooving for cabinet components. The documented spindle speed is 18,000 r/min.四组 6.0 kW 风冷主轴，可完成柜体部件的钻孔、开料与拉槽。资料标注的主轴转速为 18,000 r/min。

View full H4 details查看 H4 完整资料

A reference before every cut.加工之前，先建立基准。

H4 positioning cylinders alongside a panel, with the original Chinese image caption

1230 × 2440 mmTable size台面尺寸

Automatic positioning cylinders establish the panel reference before processing. The 1230 × 2440 mm table sits within a working travel of 1300 × 2500 × 200 mm.自动定位气缸在加工前建立板材定位基准。台面尺寸为 1230 × 2440 mm，对应加工行程为 1300 × 2500 × 200 mm。

View full H4 details查看 H4 完整资料

The job, within reach.操作与状态，集中掌握。

H4 operator screen, control buttons and keyboard

X / Y / ZAC servo drives交流伺服驱动

The operator panel brings job operation and machine status into one place. The documented configuration pairs a Taiwan control system with AC servo drives on the X/Y and Z axes.操作面板集中呈现任务操作与设备状态。资料配置采用台湾控制系统，X/Y 轴与 Z 轴均使用交流伺服驱动。

View full H4 details查看 H4 完整资料

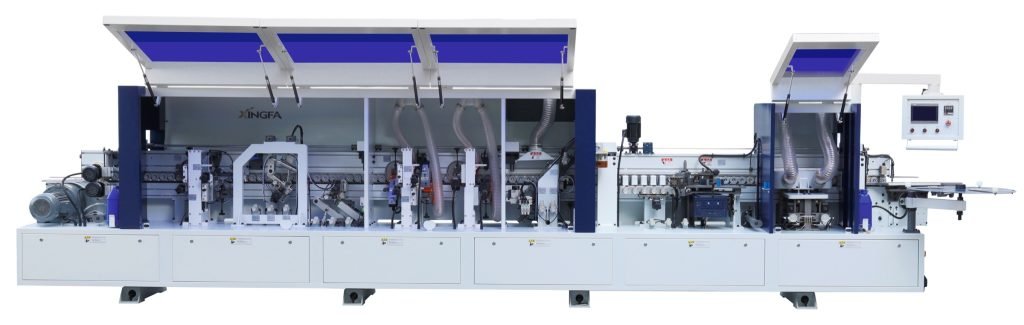

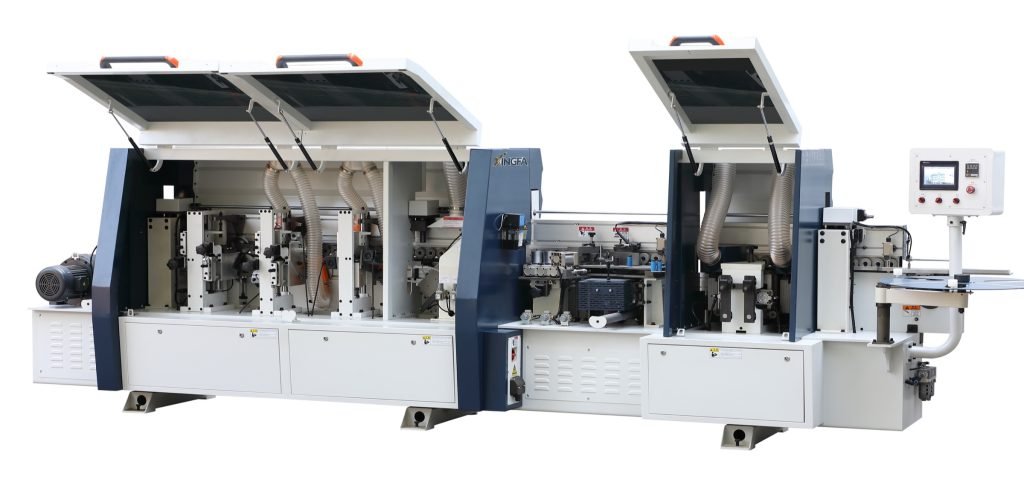

XA-6CT · Edge banding
XA-6CT · Edge bandingXA-6CT · 全自动封边机

Why Xingfa为什么选择兴发

The right fit for your workshop.从生产需求出发，选对设备

Start with your material, process and output. Explore configurations that fit the way you work.从板材、工艺和产能出发，了解适合您车间的设备配置。

Clear Specifications配置一目了然

Compare machine functions, component details and technical specifications.从加工功能、总成细节到技术参数，清晰比较设备配置。

Production Matching围绕生产选型

Compare machines around panel type, process and workshop workflow.围绕板材类型、加工工序和车间流程比较设备。

Export Preparation出口交付准备

Clarify configuration, delivery and service requirements before quotation.报价前确认配置、交付和服务需求。

Direct Communication直接需求沟通

Send product, material and capacity requirements to the Xingfa team.向兴发团队提交产品、材料和产能需求。

Equipment in Focus设备与工艺

Built around your production.以工序为起点，以细节为依据

From cabinet panels to door-frame finishing. Explore each process up close.从柜体板件到门框精加工，近距离了解设备与工艺。

H4 four-process CNC cutting machine in the workshop
H4 · Four-process CNC cutting machineH4 · 四工序数控开料机实拍

Production Workflow生产工序H4

Cut, drill and groove with one machine.一台设备，
衔接柜体三道工序

H4 combines cutting, drilling and grooving for cabinet panels. Four high-speed spindles and automatic positioning support each step, from locating the panel to machining the part.H4 将柜体板件的开料、钻孔与拉槽集中在一台设备上。四组高速主轴配合自动定位，从板材定位到部件加工，衔接每一道工序。

  • Panel cutting板材开料
  • Drilling钻孔
  • Grooving拉槽
Explore H4查看 H4 开料机

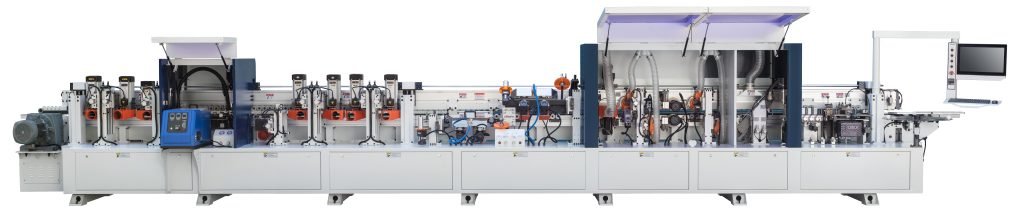

XF5-T28K pressure beam and outfeed rollers
XF5-T28K · Pressure beam & outfeedXF5-T28K · 压梁与出料部位

Machine Details设备细节XF5-T28K

Bring door-frame finishing together.让门框加工，
衔接成一道流程

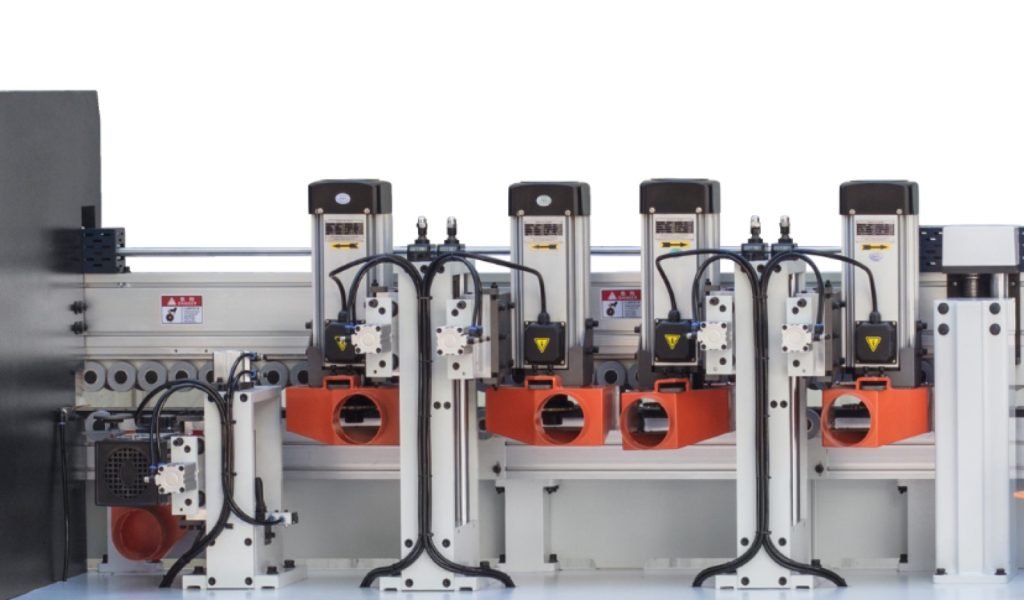

XF5-T28K brings edge banding, upper and lower transfer, and eight grooving units into one line. Heat transfer covers the glue lines for a more consistent transition between the panel face and edge.XF5-T28K 将封边、上下转印与八组开槽总成集于一线。热转印覆盖上下胶线，让板材平面与封边面的过渡更统一。

  • Edge banding封边
  • Upper & lower transfer上下转印
  • Eight grooving units八组开槽
Explore XF5-T28K查看 XF5-T28K 一体机

A panel's journey板材生产路径

Follow the process.
Explore the machinery.顺着工序，
找到对应的设备。

From a shaped panel to a finished edge and connecting details. Select a stage to see the work and the machine behind it.从板件成型，到边缘处理，再到孔槽连接。选择一道工序，了解它的工作内容与对应设备。

An illustrative route: sequence and machine selection can change with the workpiece and process requirements.此为工序路线示意；先后顺序与设备选型可按工件及加工要求调整。

Cutting开料H4 Edge banding封边XA-6CTA-PUR Drilling钻孔XB612Q

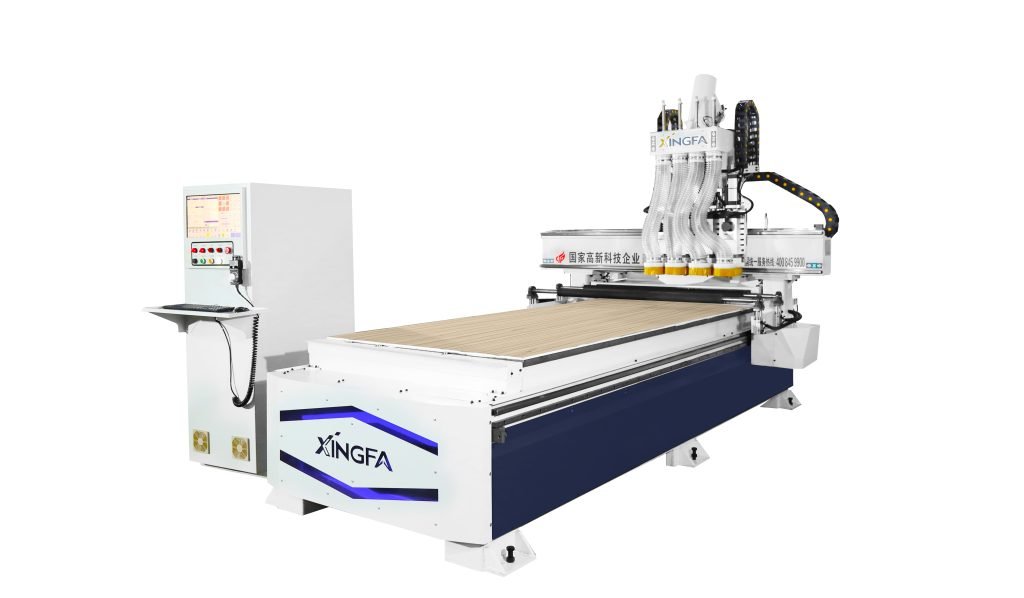

H4 · Four-process CNC cutting machineH4 · 四工序数控开料机

Cutting开料

Give each panel its shape.从整板，到所需部件

H4 supports cabinet-panel cutting, drilling and grooving with four air-cooled spindles. Here, it introduces the cutting stage; its role can cover more than one process.H4 以四组风冷主轴完成柜体板件的开料、钻孔与拉槽。这里以开料作为路径起点，同一台设备也可承担多道工序。

Air-cooled spindles风冷主轴
4 × 6.0 kW
Working travel工作行程
1300 × 2500 × 200 mm
Explore H4查看 H4 设备

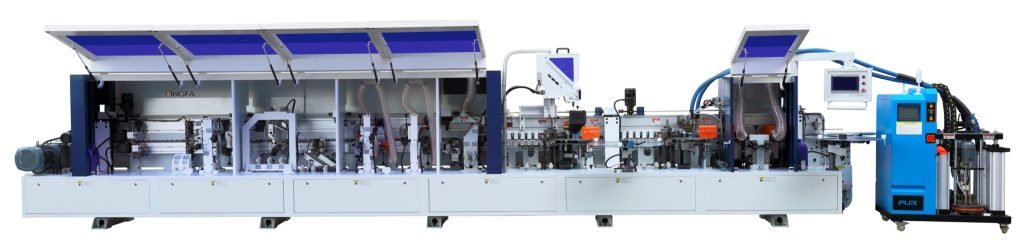

XA-6CTA-PUR · Automatic edge banding machineXA-6CTA-PUR · 全自动封边机

Edge banding封边

Refine the edge of the panel.让板件边缘，细致成型

XA-6CTA-PUR brings PUR gluing, trimming, flexible scraping and buffing into the edge-banding process. Match the settings to the panel and edging material.XA-6CTA-PUR 将 PUR 涂胶、修边、柔性平刮与抛光衔接于封边工序。根据板材与封边材料，进一步确认加工设置。

Panel thickness板材厚度
9–60 mm
Feed speed settings送料速度档位
12 / 16 / 20 m/min
Explore XA-6CTA-PUR查看 XA-6CTA-PUR 设备

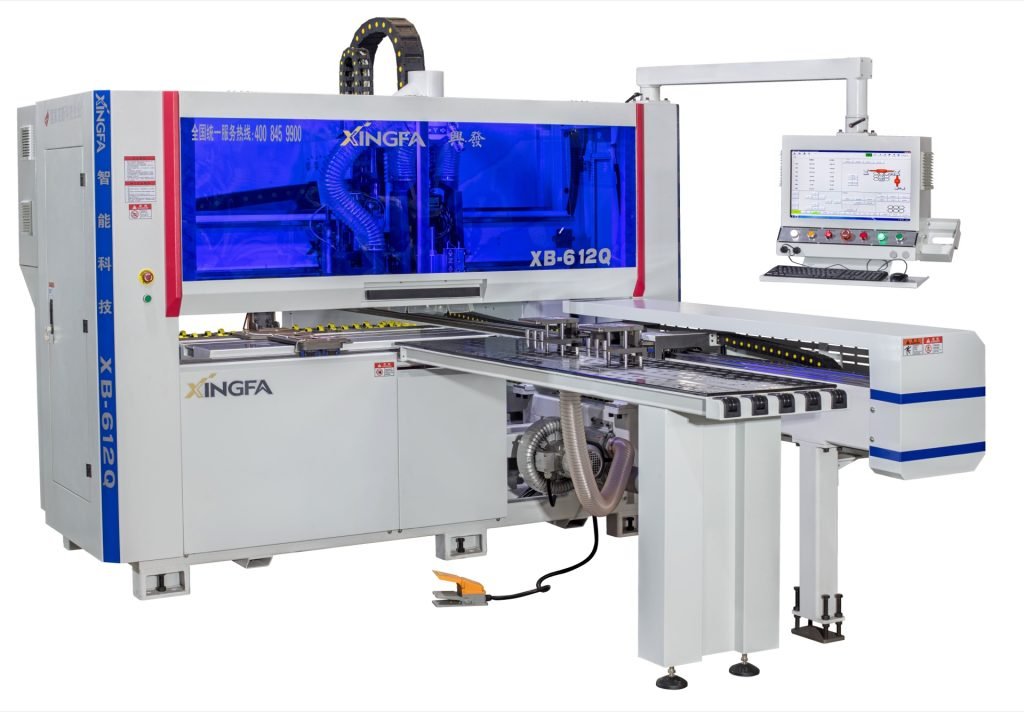

XB612Q · CNC six-side drilling machineXB612Q · 数控六面钻

Drilling钻孔

Prepare the connecting details.为部件连接，做好孔槽细节

XB612Q supports six-side drilling and grooving for cabinet components. Upper and lower processing units work on the panel faces, with clamps positioning the workpiece.XB612Q 面向柜体部件的六面钻孔与开槽。上下加工单元配合夹持定位，处理板件各面的孔位与槽口。

Maximum panel width最大板宽
1200 mm
Maximum panel thickness最大板厚
50 mm
Explore XB612Q查看 XB612Q 设备

The figures shown apply to each machine. Discuss panel size, material and processing requirements to shape your configuration.以上参数分别对应各台设备。选型时，可结合板件尺寸、材料与加工要求进一步沟通。

Explore production applications了解更多生产应用

Work With Xingfa与兴发合作

From machine selection to a clearer purchase plan.从设备选型到清晰的采购方案

Xingfa presents the product range by real production tasks. Share your material, finished product and expected capacity, and we will organize the next discussion around those requirements.兴发按照真实生产工序展示产品。您只需提供板材、成品和预期产能，我们将围绕这些需求推进后续沟通。

  1. 01Tell us the product and material说明产品与板材
  2. 02Confirm process and configuration确认工序与配置
  3. 03Prepare quotation and delivery plan准备报价与交付方案
Start a project discussion开始沟通项目需求

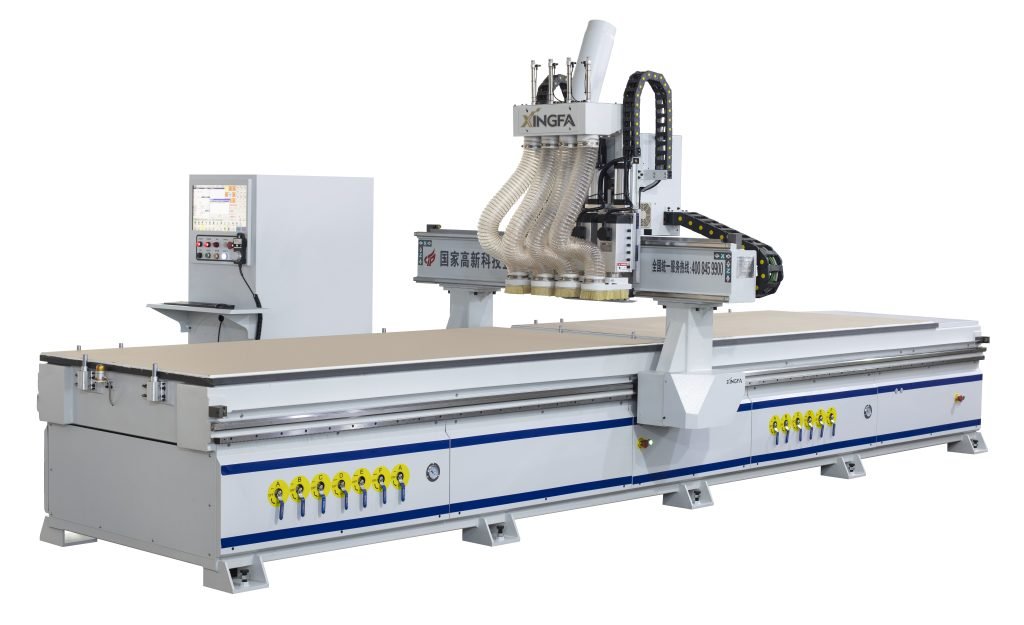

H4S dual-station CNC cutting machine
A product-led approach以产品与生产为核心XINGFA

Inside The Industry走进木工机械产业

Inside the Lunjiao machinery industry.走进伦教木工机械产业

A closer look at Lunjiao's woodworking machinery hub, where manufacturing experience, equipment and production expertise come together.走近伦教木工机械产业基地，了解制造经验、设备与生产技术如何汇聚成完整的产业实力。
